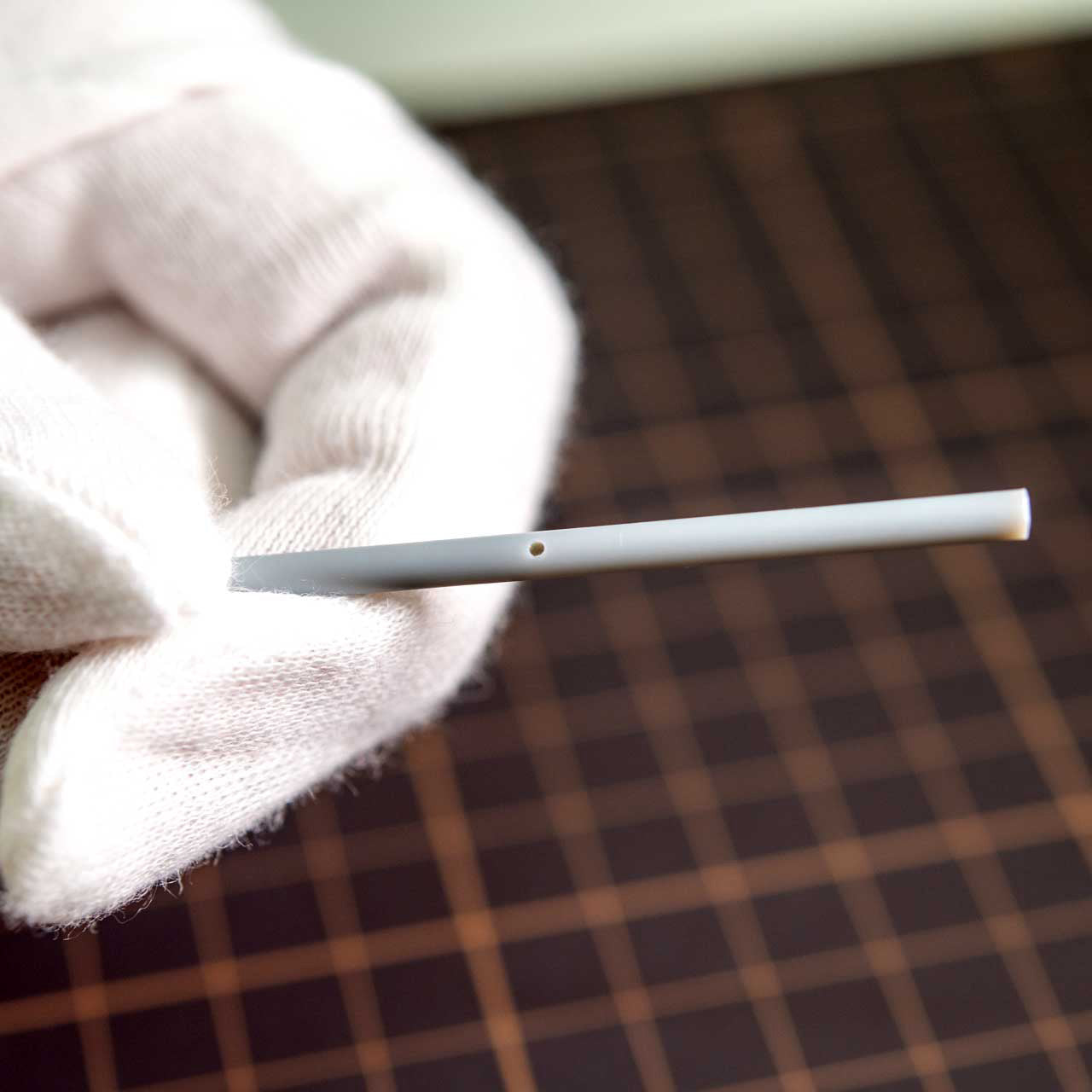

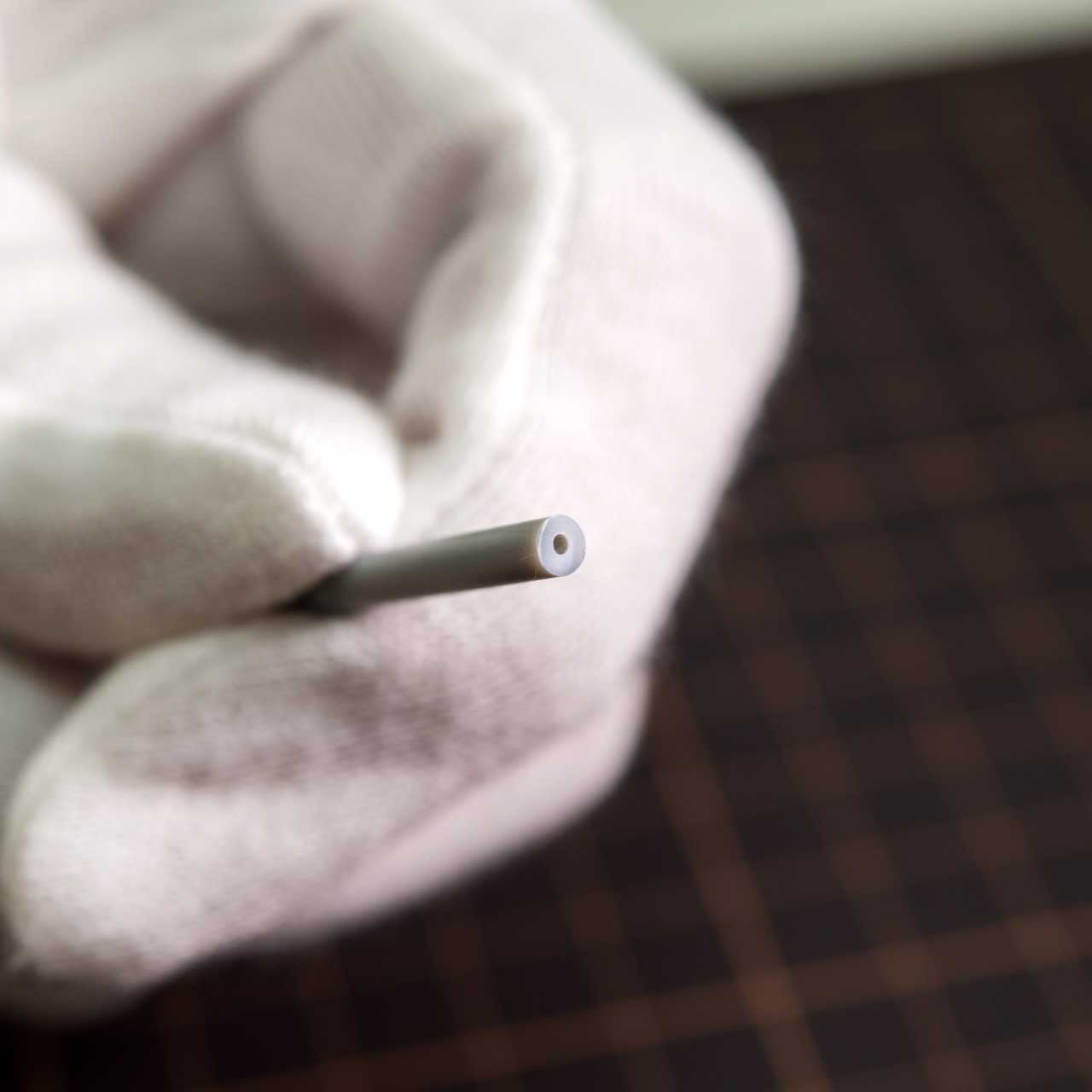

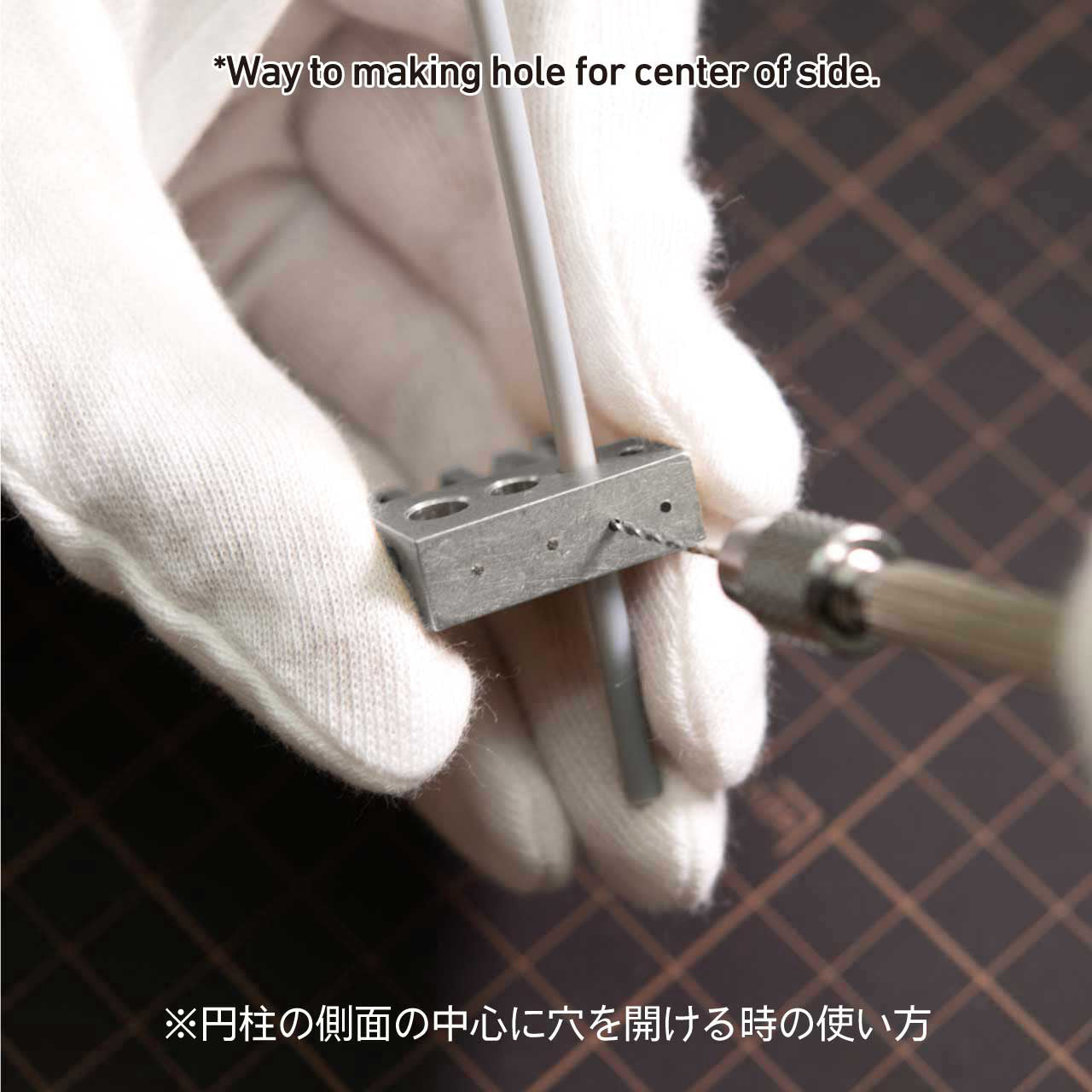

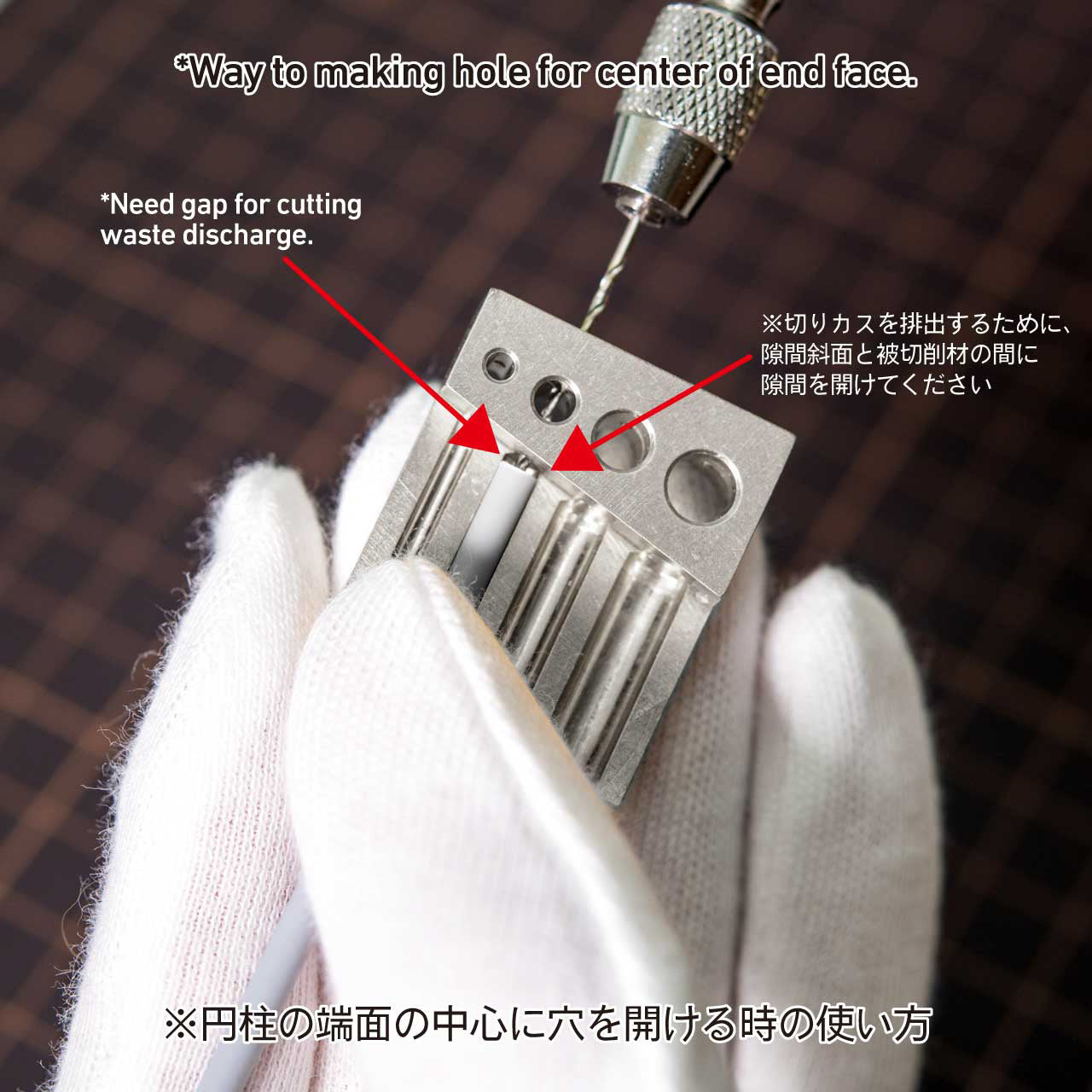

It is a jig that drills straight holes in the core (end) and side of plastic round bar material, and is dedicated to a 1 millimeter diameter drill blade. If you want to drill a hole smaller than 1 mm in diameter, please use a drill blade with a small diameter blade at the tip on a 1mm axis (however, the total length of the blade is at least 18mm is required for core and end processing).

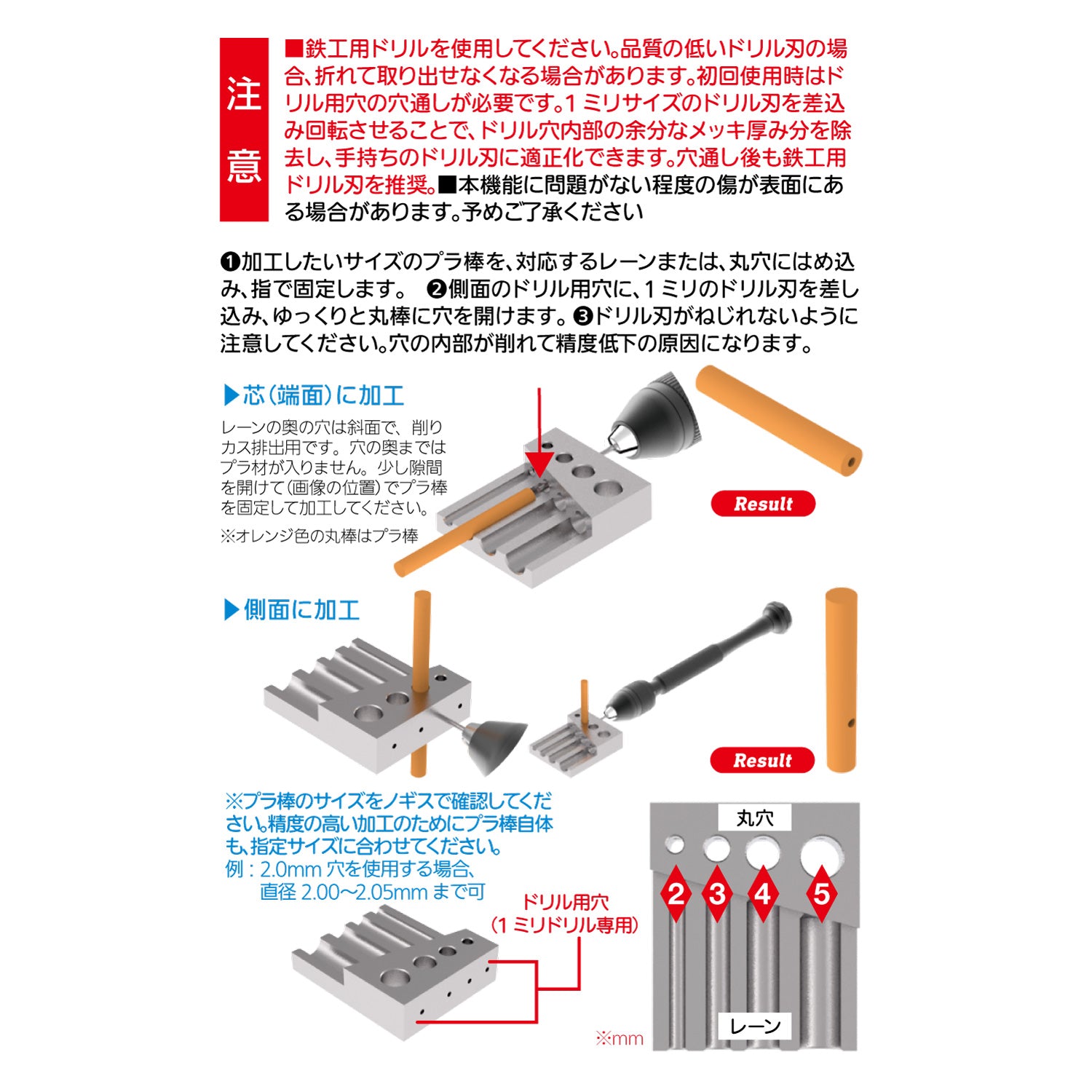

Attention ■For high-precision processing, please adjust the plastic rod itself to the specified size. Example: If you use a 2.0mm hole, it can be from 2.00 to 2.05mm ■Be sure to use a drill blade of the specified size. The inner wall of the hole may be scraped and the accuracy may decrease, and the blade may not come out. ■There may be scratches on the surface that are not problematic in use. Thank you for your understanding ■Processable material Plastic
Please use ironwork drills such as NACHI (Fujikoshi). In the case of a low-quality drill blade, it may break and cannot be removed. When using it for the first time, it is necessary to drill holes. By inserting a 1 millimeter-sized drill blade, you can remove the excess plating thickness inside the drill hole and fit it to your own drill blade. Drill blades for ironworkers are recommended even after drilling holes.
